LED bed light

I have been working on my own custom wakeup-light on and off for several years (part 1, part 2, part 3). After getting Philips Hue lights, however, I have not gotten around to setting it up in my new apartment. So recently, when the need came along, I figured the quarter round rod I used for that project might also make a pretty nice looking bed light.

Version 1

I cut one of the old rods to length and taped it to the headboard to see how it would look:

This could work! I borrowed the old driver board from the wakeup light and hooked up a couple of potentiometers to an Arduino to try the whole thing out:

Version 2

After convincing myself (and subsequently the significant other) that this was a good idea, I went at designing and 3D-printing some mounting brackets to replace the silver tape that held the v1 in place.

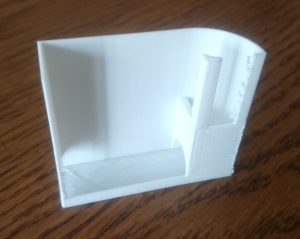

Prototype 1
Prototype 2
Final version

The last version was long enough to hold the rod and had holes to let the cable escape invisibly out the back of the headboard:

Looking way better already!

Version 3

The next thing to work on was the electronics. Using potentiometers and analog inputs was not really ideal as the light would flicker and change even by just touching the knobs or the cables and required frequent polling of the inputs in the code. Also, the potentiometers I had were only single-turn.

To make a more reliable control, I ordered some EC11 and EC12 “coded switches” or rotary encoders from Aliexpress. These turn just like potentiometers, but are really acting like switches, opening and closing in a sequence that lets you decide which way they are rotating. The main advantage of this is that there is no need to sacrifice an entire analog input channel just for the sake of having a rotary knob and furthermore, the pins can be hooked up to pin interrupts, removing the need for polling altogether. The ones I got could also be pushed like a button, which I could use to switch between brightness and color mode instead of having two separate knobs like before.

After getting the  encoders in the mail, I designed yet another version of the holder that would also house the control knob:

The knob looks a bit out of place and is bigger than is really needed. I will probably try making a smaller one that fits the style of the whole thing a bit better for version 4. And then it would also be neat if the light could be controlled over wifi of course… But first I will figure out a way to hide the electronics so that they are not on top of the headboard!

The  3D-printed parts I made fit the bed IKEA Malm really well but are fairly simple in design. If you still would like me to share them for your own project, drop a comment below!

Wake-up Light Part 3: Hardware

This is the third part (part 1, part 2) of my write-up on building a Raspberry Pi-based wake-up light. At this point, the Pi was capable of switching 433 MHz remote controlled outlets and can be scheduled to do this at certain times.

I had a few ideas on how to roll my own light for the project. In the end, I went for 10 m of RGB-LED strip on Ebay and four pieces of quarter round rod from the department store. I think these pictures speak for themselves:

2014-02-03 21.00.58 2014-02-08 21.51.332014-02-03 20.14.41 2014-02-08 19.51.592014-02-03 20.14.32 2014-02-03 20.36.15 2014-02-03 20.14.562014-02-08 22.42.13

To get off the ground quickly, I whipped out an Arduino and soldered three MOSFET transistors to a protoboard. My initial idea was to hook it up to the Pi via I2C, but as I had the 433 MHz receiver left over from the kit I bought, and also already being familiar with the library as I used it to find what codes to use for my outlets, I figured I might as well make it wireless. This also has the added bonus of making it possible to control the light directly with my existing remote.

2014-02-08 21.46.16

To test things out, I hastily modified the rc-switch library example. The code is available over on my Github account, although for the time being it really is not very pretty and does contain bugs! I made the A-channel on my remote turn the light on and off and used B to set the brightness. I also wrote a small state machine to dim the light from blue through red and orange and up to white at full brightness over the course of 15 minutes. This would be my wake-up sequence. The “E” channel does not have any buttons on my remote (only A-D). It is, however, no problem to send on and off commands on it using the commands on the Raspberry Pi. Making the Arduino listen to channel “E” of my outlet remote system meant I did not have to waste one of the four channels on the actual remote. To the Pi it was all the same, I just changed what channel it should power on in the crontab. Here is an attempt to catch a sped-up version of the light sequence on camera. You get the idea.

2014-03-04 21.02.06

Sweet, at this point the project was really starting to get somewhere! The wake-up sequence is good enough for now, and the extra feature of being able to toggle the light on and off along with my other lamps in the evening is very convenient. With the right setup, ssh, nano and cron can be quite ok for setting the alarm. However, I was hoping to do something more portable and… modern, like an MQTT message server perhaps?

Next time: Software!

Wake-up Light Part 2: Scheduling

Last time, we had managed to get a command for controlling the lights up and running on the Raspberry Pi. The obvious choice for scheduling such a command in Linux is Cron. To automatically turn on the lights using Cron, we need to edit the root-user’s crontab:

This will launch a text editor inside the terminal. Lets scroll down to the end using the arrow keys and add the following lines:

The values, in turn, represent minute, hour, day of month, month and day of week. That is, the first command fires 06:45 every month, Monday through Friday. The send command is the same as before; turn group 11111, light 3 and 4, on (1). There is lots you can do with Cron and it has been around forever. If you have not used it before there are lots of extensive guides out there to get you started so I will not bother. This setup took me through most of the winter. The Pi turned on the lights just before my alarm went off at 07:00 and the results were imminent – waking up was a lot easier and “softer” as the light eased the body into the idea of waking up before it was blasted by the sound of an alarm. It was good, but not what I had planned for. This was only fading in two discrete steps, and even though I could just have added a few more outlets like this, I really wanted a singe, more powerful, custom light. Plus, the relays in the outlets make a loud and annoying clicking sound when they turn on. On the software side things were working fine, but logging onto the Pi and setting the alarm in the terminal was not really optimal. Next time: Building some hardware!

Wake-up Light Part 1: Flipping switches

2014-02-08 22.45.39 2014-02-08 22.45.20 2014-02-08 22.45.31

I’ve had the idea to build my own wake-up light for quite some time. This winter i finally got around to it. This is the first part of my write-up of the project.

In simple terms, the point of a wake-up light is to gently wake you up by slowly turning up the light before the alarm goes off in the morning. There are several commercial products available that do this already, all of which I think are either ugly, too small or simply not practical enough for my use case. Some of the things I wanted that are commonly not available in these products are:

  • Big, powerful light. Usually, products are night stand-size alarm clocks with a few measly watts of power.
  • RGB controllable light. My living room is also my bedroom. If I’m going to make the wake-up light big and powerful, I also want to be able to set it to a cosy warm evening-setting. Plus, this would make it able to do a more sunrise-like color fade in the morning.
  • Powerful scheduling options. I’m a student and don’t get up at regular hours every day. I want the wake-up time to be easily settable, preferably synchronized to my alarm or even my schedule.

Flipping some switches

I figured I could use my Raspberry Pi as the central point for the system. It’s hanging off the back off my TV, running Raspbmc and is on 24/7 anyway, so a simple start would be to add a cronjob to simply turn on some lights in the morning. I already had 433 MHz light switches connected to three ambient lights in my room, so I started out with by hooking up a transmitter to the Pi.

2013-10-12 22.51.17

Having someone in Shenzen send me a transmitter/receiver pair for 433 MHz on Ebay set me back about the same amount sending a normal letter home to my mother would. Mine was titled “RF Wireless Transmitter & Receiver Kit Module 433Mhz for Arduino/ARM/MCU WL”.

rf

Obviously, someone on the Internetz already wrote the code to talk to my outlets using Arduino. And someone else also ported it to Raspberry Pi. Sweet! The project I’m using is called rcswitch-pi. According to the readme, it depends on the (seemingly useful) wiringpi project, so first we need to get that (assuming you have git installed):

Wiringpi is used for the gpio calls inside rc-switch and is sort of replacing the Arduino’s digitalWrite() and the like. Now let’s install rcswitch-pi:

The program is hardcoded to have the transmitter connected to Wiringpi pin 0, which corresponds to pin 11 of the GPIO header on the Pi. If you want, you can change this by editing send.cpp and running the make command again.

Hooking up the receiver to my Arduino and using the original rc-switch library, I figured out what group and channel corresponded to the buttons on my remote.

2013-10-12 22.50.14

I could now control the lights from the Pi using these commands:

A small explaination to all these numbers: my outlets have “group switches” allowing different remotes to control  different sets of outlets. I have mine set to 11111. The buttons on the remote are labeled A-D. I have some lights hooked up to C (3) and D (4). All this I learned by loading the example sketch from the rc-switch library onto my Arduino and observing the serial output as I pushed some buttons on the remote.

Once I knew the send command was working, I linked it into /usr/bin/. This makes it possible to run the command without having to cd into the folder every time, which will be convenient for scheduling later.

Next time: Scheduling!
